Temtop air quality monitor in our laser engraving workshop

Laser Workshop Air Quality: What I've Learned Cutting Wood All Day Since 2023

Cutting wood with a CO2 laser releases fine particles (PM2.5), formaldehyde and other volatile organic compounds, and your nose is no guide to how much. Three changes got our workshop's monitor reading Healthy through a full cutting day (a stronger extraction fan, a clean-air intake away from the outlet, and sealed ducts), and the monitor checks they're still working.

In June 2026 I ran a training session for two guys from a sign company in Merseyside who were new to lasers. The conversation that stuck with me happened during a break, when we got onto safety and air quality.

It turned out neither of them had thought seriously about what was in their workshop air. Not through carelessness: nobody had ever told them they needed to. I recognised that, because when I started cutting in January 2023, neither had I.

Why you can't trust your nose

When you cut or engrave wood with a CO2 laser, the heat produces more than visible smoke. Wood smoke contains fine particles (PM2.5), which the US EPA calls the biggest health threat from smoke: they can worsen asthma and are linked to heart attacks and strokes. It also contains formaldehyde (HCHO) and other volatile organic compounds (VOCs), which monitors report as a total (TVOC).

Formaldehyde is a colourless gas with a pungent smell, and it is classed as a human carcinogen (IARC Group 1). Some VOCs irritate the eyes, nose and throat and cause headaches or nausea, and some are linked to longer-term harm. Some of it you can't see, and you soon stop noticing the smell, so your nose is no guide.

Early on I assumed that if I couldn't smell anything, the air was fine. I was wrong. The day I bought an air quality monitor and switched it on in the workshop during a cutting session was a revelation. The numbers were not healthy. The extraction I had set up wasn't enough, and I had been sitting in that air for months.

That started a long stretch of trial and error that got me to where I am now: a workshop where the monitor reads Healthy during a full commercial cutting day. Here's how.

1. Extraction: the stock fan is a starting point

The fan that comes with an OMTech machine moves air, and for occasional hobby use it's fine. For daily commercial cutting, upgrade it. OMTech's spec table lists the fan included with the Turbo-758 at 326 m³/h.

The upgrade that made the biggest difference for us was the AC Infinity CLOUDLINE S6, a 150mm inline duct fan with a 10-speed controller. AC Infinity rates it at 425 CFM, about 720 m³/h free-air; real duct runs deliver less, but it's a big step up. OMTech itself sells the S6 as an exhaust fan for its CO2 lasers. The one that's been in longest runs all day, every working day, and the only maintenance it has needed is an annual clean. It's the best fan we've used for this.

2. Ventilation: the obvious thing people miss

If you're pushing large volumes of air out of your workshop, that air has to come from somewhere. If it's coming back in through gaps near your extraction outlet, which happens more than you'd think in smaller spaces, you're recirculating contaminated air rather than replacing it.

Put your clean-air intake on the opposite side of the room from where the extracted air leaves the building. It sounds obvious. It took me embarrassingly long to realise I'd got it wrong.

3. Sealing and fan position: every joint, every time

Where the fan sits in the duct run matters as much as how well the joints are sealed. Put the fan as close to the outside exit as you can, ideally outside, so most of the duct indoors is under suction. Leaks before the fan draw room air in, which costs you extraction at the laser. Leaks after the fan are under pressure, and they blow fumes back into the room. A loose collar, a gap at the fan housing or an untaped connection will leak either way.

Seal every joint with aluminium foil tape: not gaffer tape, not electrical tape, but foil tape made for ductwork, which handles the heat and doesn't degrade. Check your connections regularly and reseal anything that looks compromised.

4. Measure: a monitor tells you whether it's working

For me this is the most important part. You need a monitor. Not because you'll watch it every day forever, but because you need to know your setup is actually working, and to know quickly when something changes. A monitor doesn't replace extraction; it checks it.

I use the Temtop LKC-1000S+ Air Quality Monitor. It measures PM2.5, PM10, formaldehyde (HCHO), TVOC, AQI, temperature and humidity at the same time, and my unit shows a simple Healthy/Unhealthy status on the display. When it says Healthy during a full cutting day, I know the setup is working. When the numbers creep up, I know something has changed (a seal has gone, the fan needs a clean, the intake is blocked) and I fix it before the air becomes a problem.

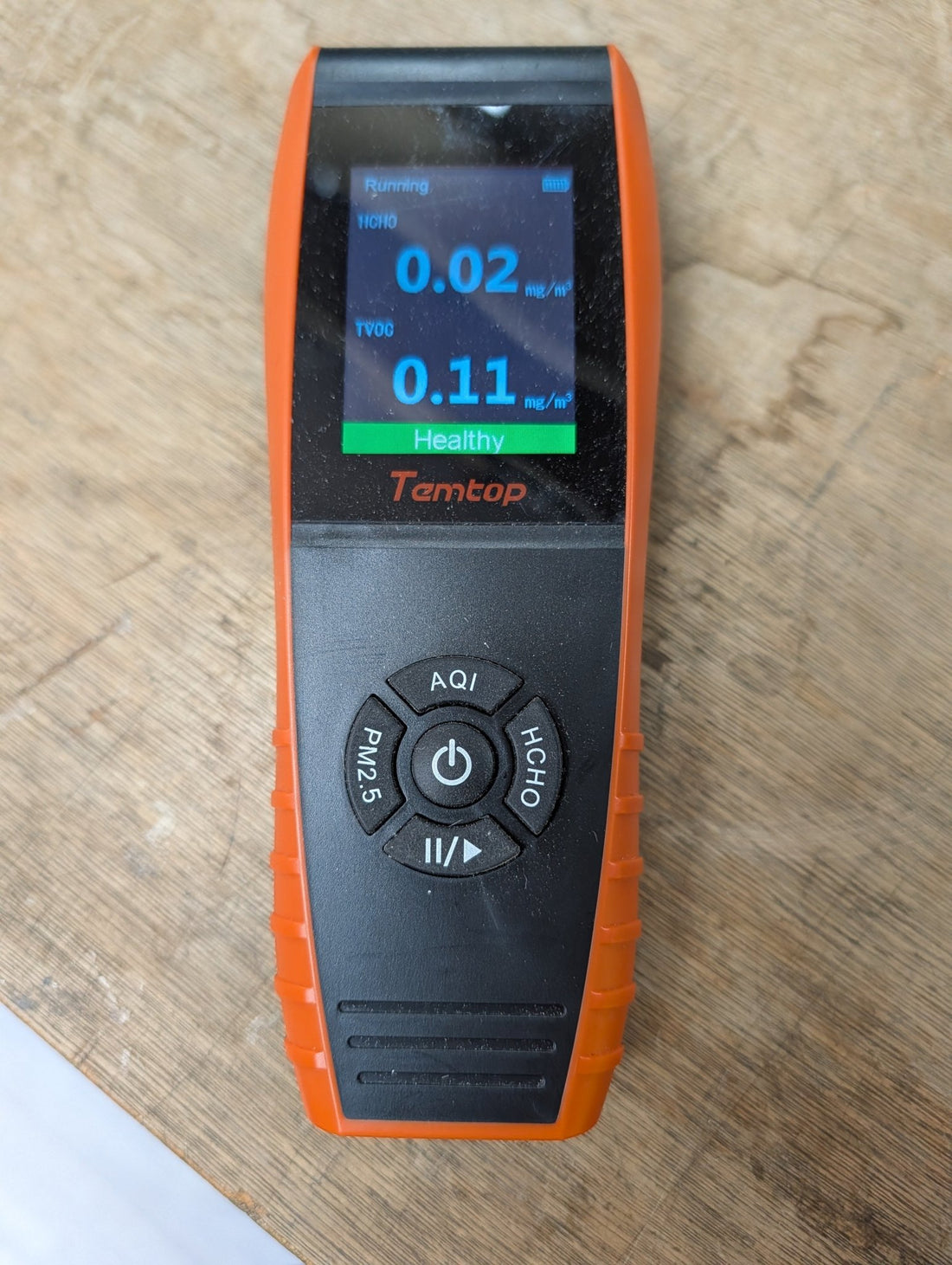

Temtop air quality monitor in our laser workshop during a cutting session in June 2026, reading HCHO 0.02 mg/m³, TVOC 0.11 mg/m³ and Healthy

The photo above shows my workshop readings during a cutting session in June 2026: HCHO 0.02 mg/m³, TVOC 0.11 mg/m³, status Healthy. For context, the UK and WHO indoor-air guideline for formaldehyde is 0.1 mg/m³ over 30 minutes, and the GB workplace exposure limit is 2 ppm (2.5 mg/m³) for both 8-hour and 15-minute exposure (HSE EH40). A consumer monitor gives an indicative reading, not formal exposure monitoring, but 0.02 is well under both.

Watch the PM2.5 figure as closely as the formaldehyde one, because fine particles are the main health risk in wood smoke. As a sense of scale, the WHO's 24-hour guideline for PM2.5 is 15 µg/m³; that is a population air-quality guideline, not a workplace limit.

Being able to measure is what lets you refine your process. Without data, you're guessing.

The conversation that prompted this post

One of the two from Merseyside told me he'd been running his laser in a converted shipping container with no extraction whatsoever. That's an extreme case, but the underlying issue isn't unusual. Most laser operators I speak to have set up some extraction, but very few have measured whether it's actually working.

If this post prompts you to measure the air in your workshop, it's done its job. You might be surprised by what you find.

Related reading

For the full setup picture before your machine arrives (space, power, cooling and air assist as well as extraction), read the pre-delivery setup checklist. For looking after the machine once it's running, our CO2 laser maintenance guide covers lenses, mirrors, lubrication and air assist. We also run a 2-hour training session, in person or by video call, if you want help setting up.

If you'd like to see a working extraction setup before you plan your own, our workshop in Buckley, North Wales, is an official OMTech showroom. Visits are free, informal and by appointment: email info@cherrygrovecraft.co.uk with a couple of dates.

Frequently asked questions

Are the fumes from laser cutting wood harmful?
They can be. Wood smoke contains fine particles (PM2.5), formaldehyde and other VOCs, and formaldehyde is classed as a human carcinogen. Extract to the outside, seal the ducts and use a monitor to check it's working.

Is the stock OMTech extraction fan good enough?
For occasional hobby use, yes. For daily commercial cutting we upgraded to an AC Infinity CLOUDLINE S6, rated at about 720 m³/h free-air against the 326 m³/h in OMTech's spec table for the Turbo-758's included fan.

Where should the extraction fan go in a laser duct run?
As close to the outside exit as you can, ideally outside, so the indoor duct is under suction. Leaks after the fan blow fumes into the room, so seal every joint with aluminium foil tape.

What is the UK workplace limit for formaldehyde?
The GB workplace exposure limit is 2 ppm (2.5 mg/m³) for both 8-hour and 15-minute exposure, set out in HSE's EH40. The UK and WHO indoor-air guideline is 0.1 mg/m³ over 30 minutes.

Does an air quality monitor replace extraction?
No. A monitor tells you whether your extraction is working and when something changes. Consumer monitors give indicative readings, not formal exposure monitoring.
